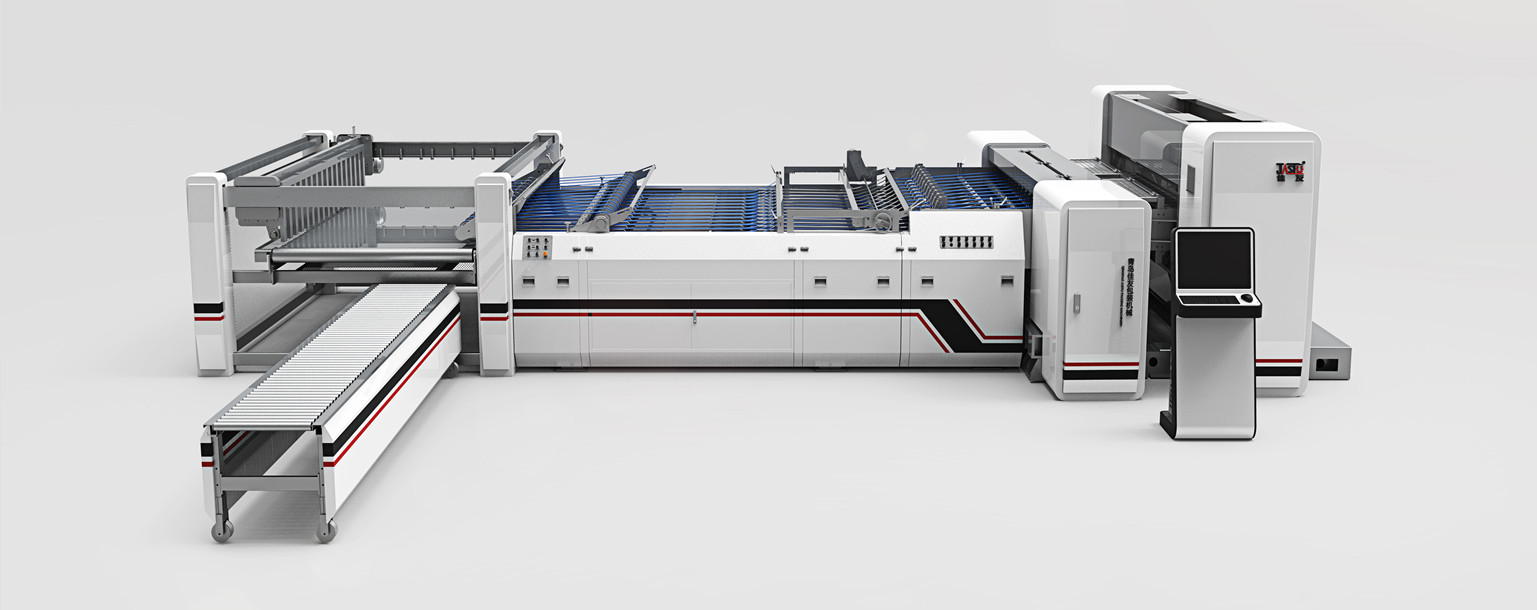

It is the best matching machine for single face cardboard slitter cutoff stacker, which could complete slitting, cutoff and receiving at one time and realize high speed, high efficiency and energy saving so as to improve working efficiency while guaranteeing the product quality.

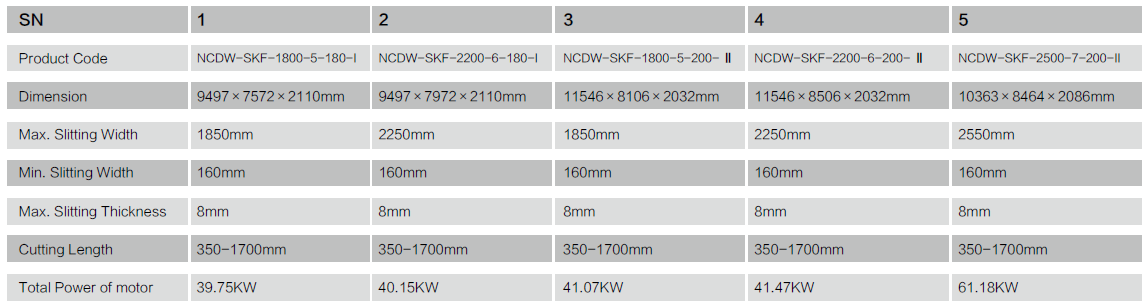

Electric & Pneumatic part
Schneider Servo Motor
Shanghai Futian VF Motor
Pneumatic components from SMC, Air Tac
Actuation Part
Gearboxes are made of HT300 high-quality gray cast iron, and characterized by aging
treatment and precise processing;
Cutter shafts that are made with seamless steel tube and aging treatment and board
guiding roller that is subject to dynamic balance checking;
ZG230-450 cast blade moving plate
Steel comb made of special material
High quality tungsten alloy thin blade
Cutting knife made of high-speed tool steel
Hantang material conveying belt
Transmission Part
HIWIN, BEST screw shaft, linear guide rail
NSK, IKO, HRB precision bearing
With imported elastic coupling, equipment can be operated efficiently at high speed for
a longer service life;
Transmission gears that are made of top quality alloy structural steel (20CrMnTi) that
is carburized and quenched and driven by imported synchronous belts;
The order arranging time of slitter is 1-3S
The color screen displays production materials distribution of site and could be able to realize
automatic order change and also give alarm signals prior to order change;
Lubricating method: force-feed and oil bath;
Slitting tolerance: ≤ ±1mm at constant speed; ≤ ±1.5mm at uniform variable speed;
Stacking part
The conveying part consists of four separate board conveying segments, and could stack and convey
the boards by VF control to the transverse discharge part.
Batches and stacks are automatically changed through pneumatic control, and automatic counting
function is achieved;
With lifting type receiving platform, stacking could be controlled through a computer to ensure neat
and stable stacking.
Boards are automatically and transversely discharged while the preset number of stacks is exceeded;
The baffle is provided with new type of device to improve neatness of boards.
Control Part
Cutting Control: Emerson AC servo controller
Conveying Control: Schneider frequency converter
Stacking Control: Schneider frequency converter
Operation Monitoring: industrial computer
Monitoring Control: Schneider PLC, Sick sensor
Low-voltage Apparatus: Schneider
